Product Features
| Part Status | Obsolete | |
|---|---|---|
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 500mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 5ns | |
| Current - Reverse Leakage @ Vr | 100µA @ 35V | |
| Capacitance @ Vr, F | 60pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |

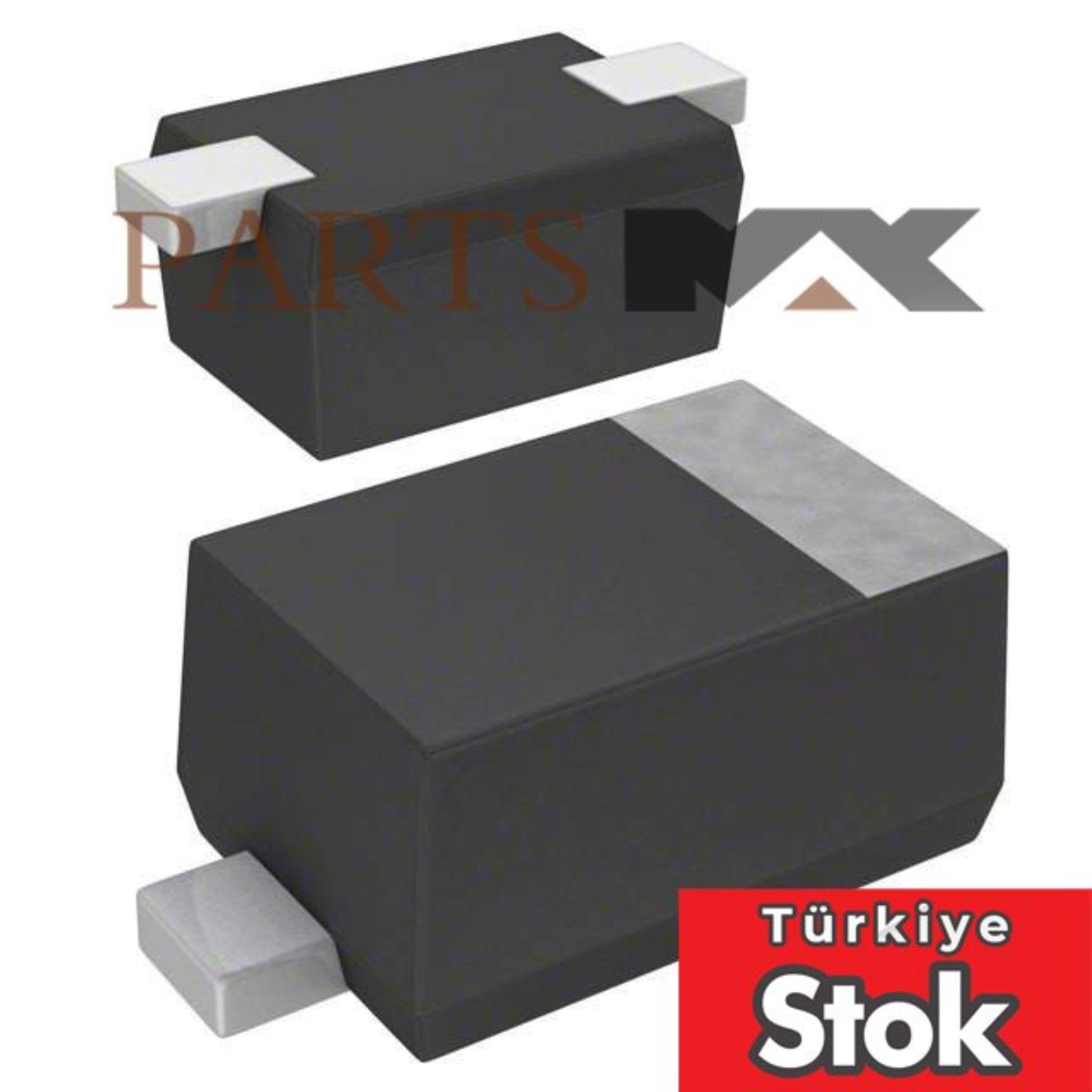

| Package / Case | SC-90, SOD-323F | |
| Supplier Device Package | SMini2-F3 | |
| Operating Temperature - Junction | 125°C (Max) | |
| Base Part Number | MA2Z720 |
Additional Resources
| Standard Package | 1 | |
|---|---|---|
| Other Names | MA2Z7200GLCT | |
