| EU RoHS |
Compliant |
| ECCN (US) |
EAR99 |
| Part Status |
Active |
| HTS |
8541.29.00.75 |
| Type |
NPN |
| Product Category |
Bipolar Small Signal |
| Material |
Si |
| Configuration |
Single |
| Number of Elements per Chip |
1 |
| Maximum Collector Base Voltage (V) |
150 |
| Maximum Collector-Emitter Voltage (V) |
150 |
| Maximum Emitter Base Voltage (V) |
5 |
| Operating Junction Temperature (°C) |
-55 to 150 |
| Maximum Base Current (A) |
0.5 |
| Maximum Base Emitter Saturation Voltage (V) |
1@50mA@1A |
| Maximum Collector-Emitter Saturation Voltage (V) |
0.3@50mA@1A|0.2@[email protected]|0.05@[email protected] |
| Maximum DC Collector Current (A) |
1 |
| Minimum DC Current Gain |
200@10mA@10V|30@1A@10V|300@200mA@10V |
| Maximum Power Dissipation (mW) |
625 |
| Maximum Transition Frequency (MHz) |
135(Typ) |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Packaging |
Tape and Reel |

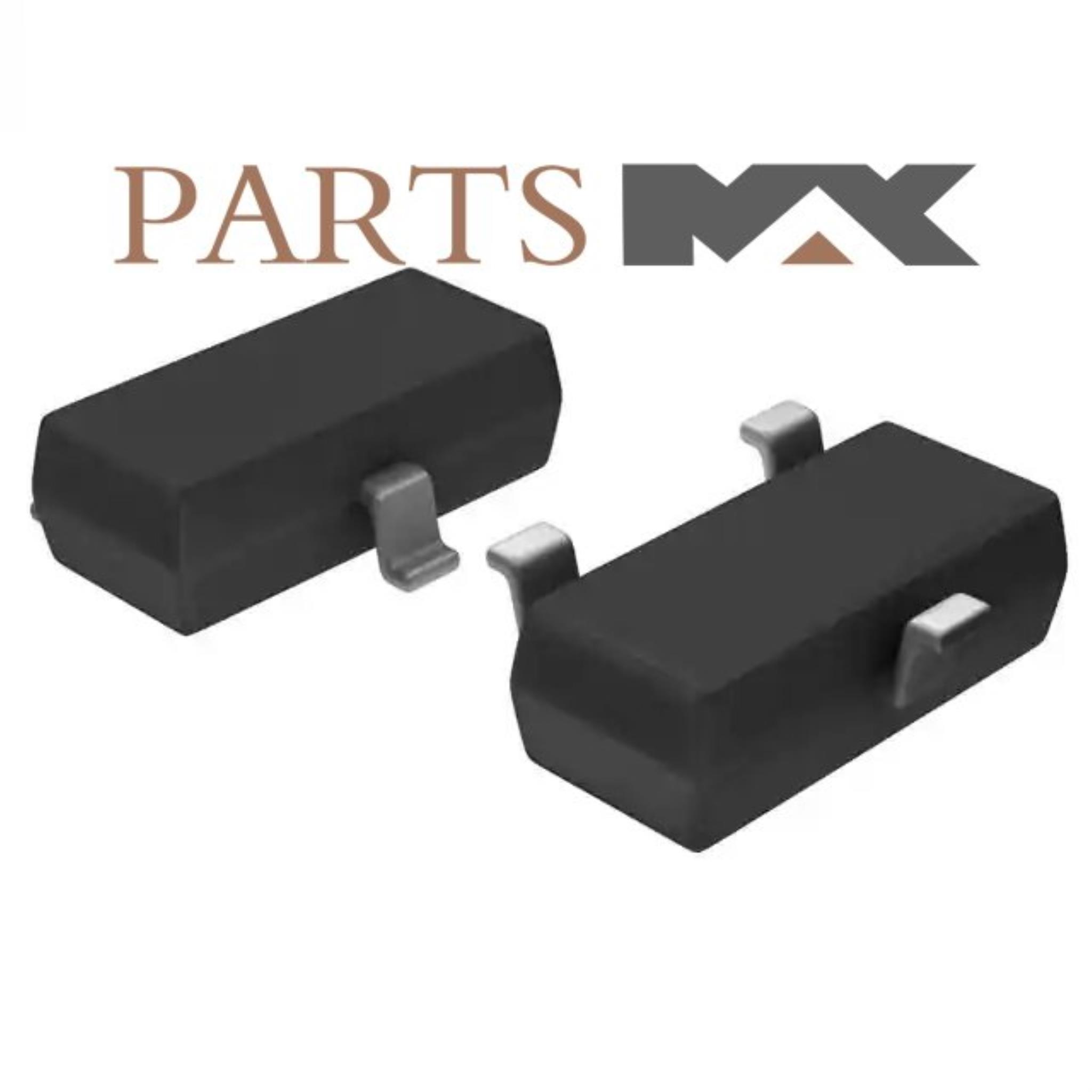

| Supplier Package |
SOT-23 |
| Pin Count |
3 |
| Standard Package Name |
SOT-23 |
| Mounting |
Surface Mount |
| Package Height |
0.98 |
| Package Length |
2.9 |
| Package Width |
1.3 |
| PCB changed |
3 |
| Lead Shape |
Gull-wing |
