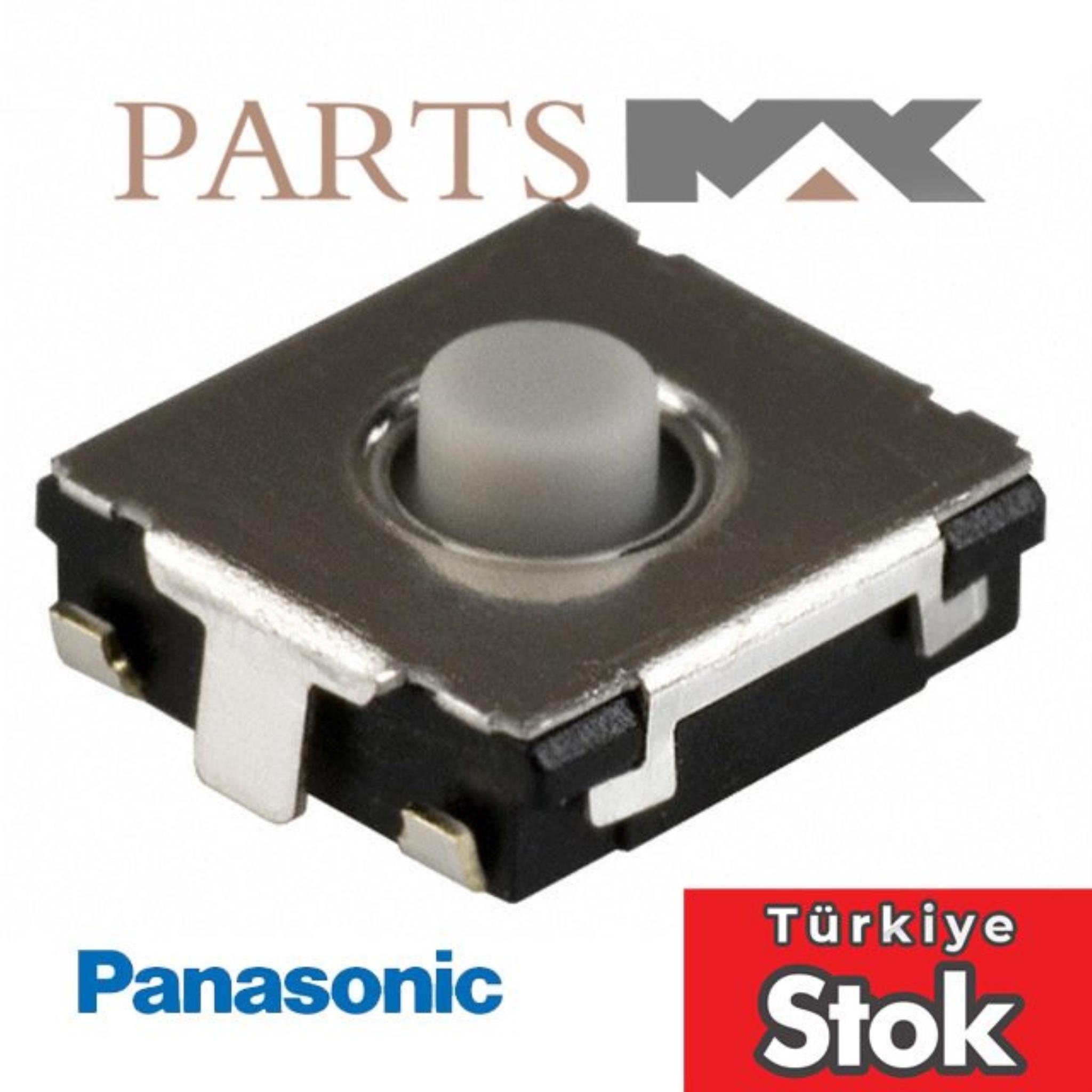

EVQ-P0N02B Panasonic | Switches | Partsmax Türkiye

Product Features

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Type	Light Touch
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switch Configuration	N.O.
Maximum Current Rating (A)	0.02@15VDC
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	2000000
Operating Force (N)	0.6
Actuator Color	Blue
Actuator Length (mm)	0.7
Number of Rows	2
Row Spacing (mm)	6.8
Mounting	Surface Mount
Termination Style	J-Bend
Number of Terminals	4
Terminal Length (mm)	0.05
Terminal Pitch (mm)	4
Body Orientation	Straight
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tape and Reel
Body Length (mm)	6
Body Depth (mm)	6.5
Body Height (mm)	1.8
Product Length (mm)	6
Product Depth (mm)	6.6
Product Height (mm)	2.5

Additional Resources

ATTRIBUTE	DESCRIPTION
Other Names	P12965STR P12965SCT EVQP0N02B P12965SDKR
