| Product Type |

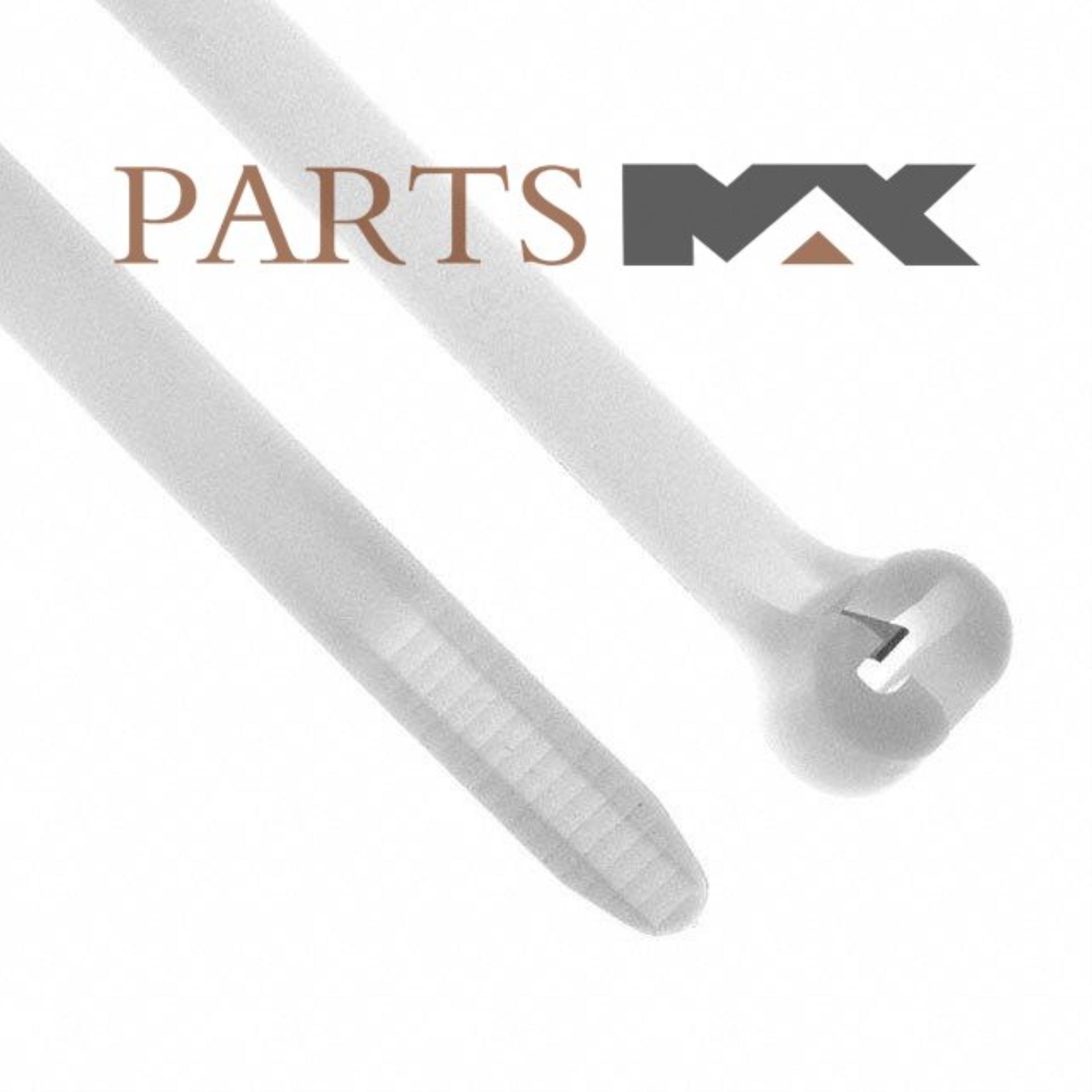

Cable Ties |
| Color |
Natural |
| Environment |
Indoor |
| Sub Brand |
Dome-Top® |
| For Use With |
GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material |
Nylon 6.6 |
| Resistance Properties |
NA |
| Maximum Bundle Diameter (In.) |
0.9 |
| Maximum Bundle Diameter (mm) |
23 |
| Maximum Installation Temperature (°C) |
0 |
| Maximum Installation Temperature (°F) |
32 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Operating Temperature (°F) |
185 |
| Minimum Bundle Diameter (In.) |
0.06 |
| Minimum Bundle Diameter (mm) |
1.5 |
| Minimum Installation Temperature (°C) |
-20 |
| Minimum Installation Temperature (°F) |
-4 |
| Minimum Loop Tensile Strength (N) |
80 |
| Minimum Loop Tensile Strength (lb) |
18 |
| Minimum Operating Temperature (°C) |
-60 |
| Minimum Operating Temperature (°F) |
-76 |
| Overall Length (In.) |
4 |
| Overall Length (mm) |
102 |
| Body Width (In.) |
0.095 |
| Body Width (mm) |
2.4 |
| Body Thickness (In.) |
0.036 |
| Body Thickness (mm) |
0.9 |
| Standards Met |
UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Complaint |
| Military Cross Reference Number |
MS3367-4-9 |
